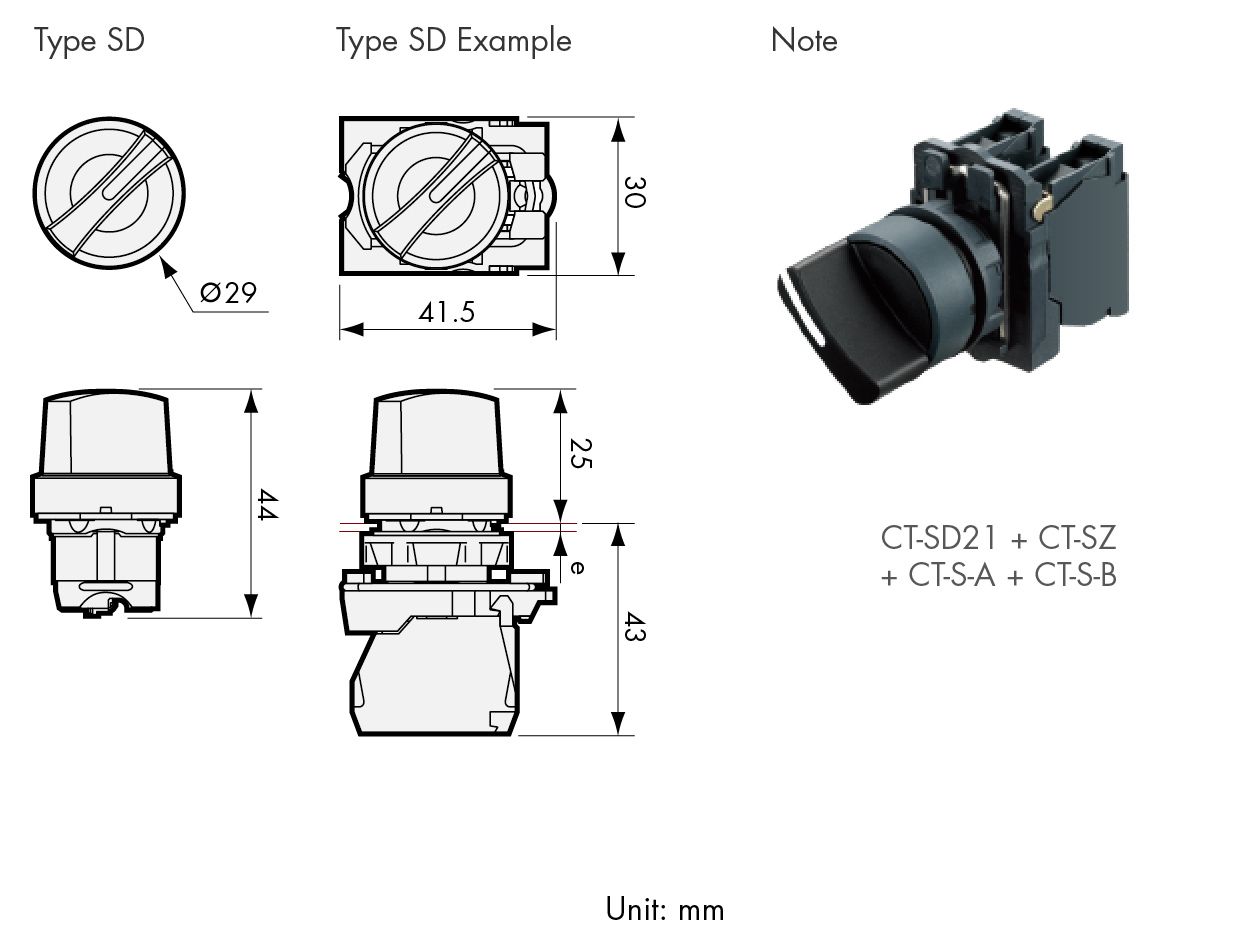

Standard Handle Switch

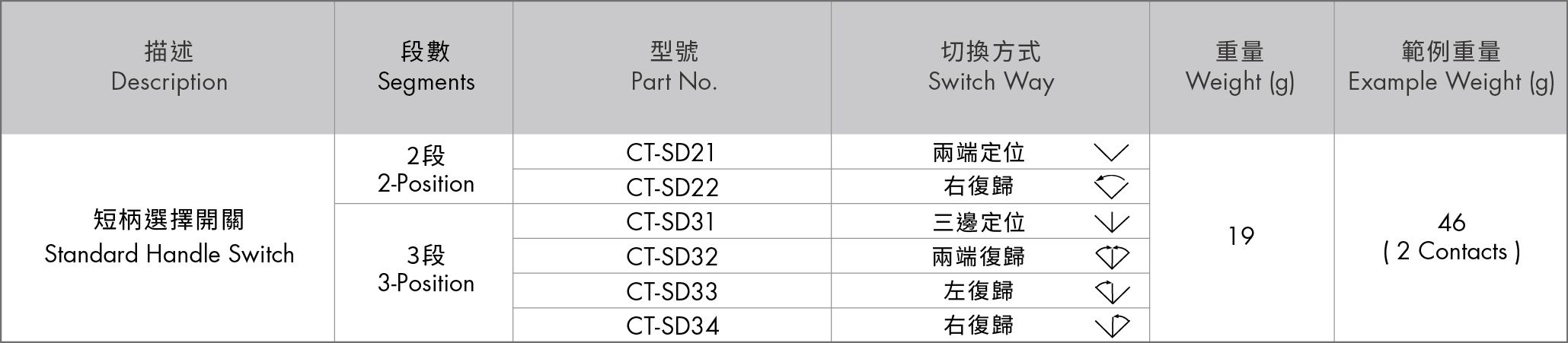

Item Model:CT-SD Series

Rated Capacity:

AC-15 220V/6A 380V/4A 660V/2A
DC-13 24V/6A 48V/3A 110V/1A

Contact ResistanceHard Sliver Contact≤50mΩ

Max. Insulation Voltage: AC 2500V 50Hz, 1min

Mechanical Life:

Normal Button≥2 x 106times‚ Knob≥4 x 105times,

Key Button≥5 x 103times, Emergency Button≥5 x 103times

Electrical Life: ≥6x105times

Conventional Thermal Current: Ith 10A

Rated Insulation Voltage: Ui AC660V

Ambient Temperature: -25°C~+55°C

IP Ratings: IP40~65

Product Description

S Series buttons are manufactured according CE safety certification requirements, meets IEC947, EN60947, CCC China and GB14048.5-2001 standards.

Button mounting method adopts cap-nut locking structure, provides good antifouling and water-resistance function. Contact switches uses modular and closed structure, avoid direct finger contact causes electric shock. Every component is internationally self-locking joined fasteners, easy accessibility, safety and reliability. With anti-shock screw terminals which provides firm position but easy installation.
