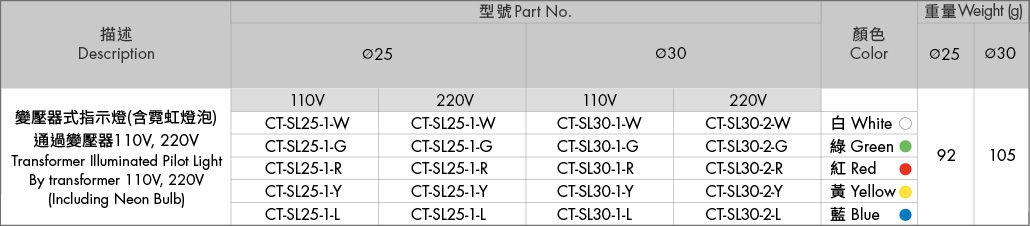

Transformer Illuminated Pilot Light (Including Neon Bulb)

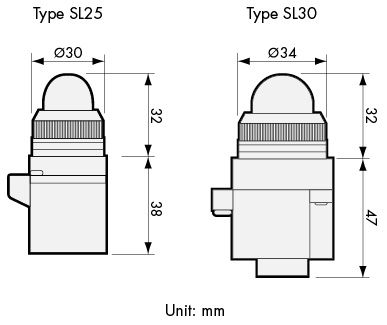

Item Model:CT-SL25/30 Series

By transformer 110V, 220V

Rated Capacity:

AC-15 220V/6A 380V/4A 660V/2A
DC-13 24V/6A 48V/3A 110V/1A

Contact Resistance: Hard Sliver Contact≤50mΩ

Max. Insulation Voltage: AC 2500V 50Hz, 1min

Mechanical Life:

Normal Button≥2x106times‚ Knob≥4x105times,

Key Button≥5x103times, Emergency Button≥5x103times

Electrical Life: ≥6x105times

Conventional Thermal Current: Ith 10A

Rated Insulation Voltage: Ui AC660V

Ambient Temperature: -25°C~+55°C

Product Description

J Series buttons are manufactured according CE safety certification requirements, meets IEC947, EN60947, CCC China and GB14048.5-2001 standards.

J Series composes by major two essential parts, button head screw kit and base as operating center. Clever design, neat appearance, easy installation, reliable direct finger contacts. Adopting anti-vibration structure, positioning accuracy and preventing loosening, outdoor panel miniaturization and integration, it is the wise choice for the control panel.
