Timer
Item Model:CT-DHC3L Series

Part No. :

CT-DHC3L6NL-S (Time Display:99h59m59s)
CT-DHC3L6NL-H (Time Display:9999h59m)

‧Battery life-expectancy: ≧5 years

‧Number display height: 6.7mm

‧Timer error: ≦0.002%

‧ON/OFF maximum resistance≦10KΩ(counter ON)

‧ON/OFF minimum resistance≧500KΩ (counter OFF)

‧Maximum residual voltage 0.5V

‧Weight: Approximately 60g

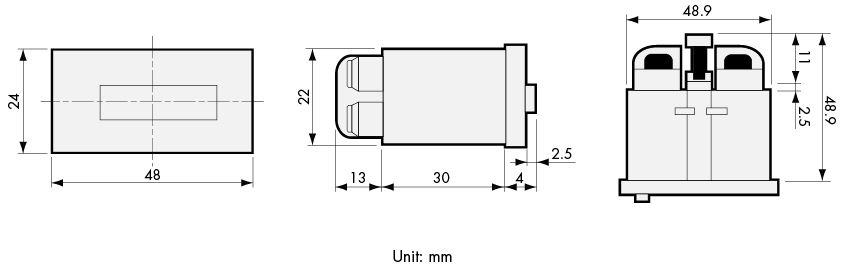

‧Dimension of mounting hole: 22.2x45mm

‧Reset method: External button

‧Operating temperature: 10~40˚C

Product Description

‧DIN 48x24mm standard faceplate area

‧Reset signal should not be applied for a long time so that internal battery will not be wasted

‧Very accurate timer

‧LCD display, large and clear

‧Reset and lock, to prevent errors in operating

‧No mechanical wear out , long lifetime

‧Internal power source, no need for external power
