Operating Force OF(Max): 900g-cm
Release Force RF(Min): 200g
Pre-travel PT(Max): 1.8mm
Tripping Position TP (±10%): 2.0mm
Movement differential MD(Max): 1.2mm
Over travel OT(Min): 4.0mm
Total travel TT(Min): 5.8mm
‧ Metallic bottom cover
‧ Stainless steel roller, tool steel and spring

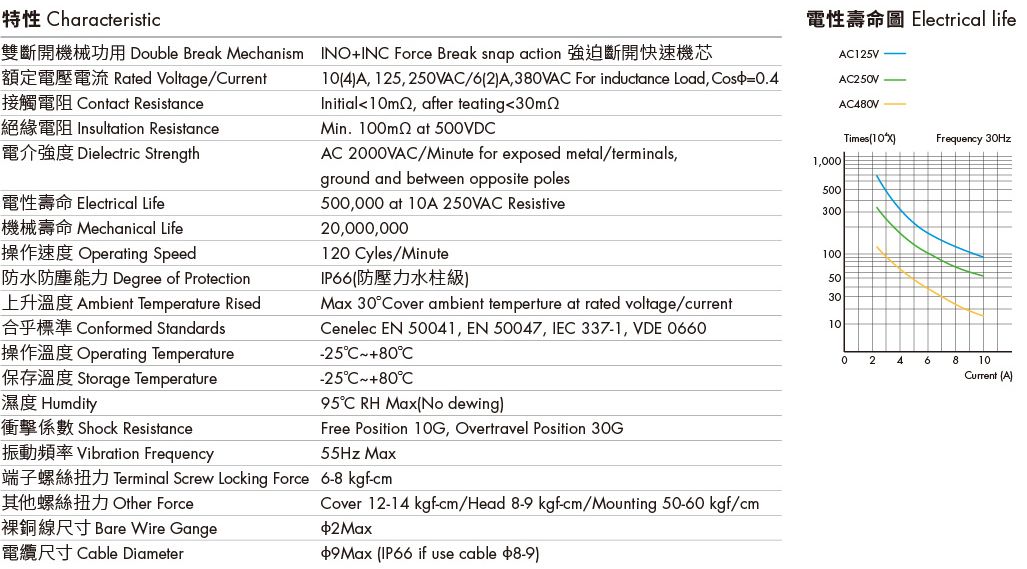

‧ Strong electric property 10A, 250V, for 500,000 times
