Operating Force OF(Max): 500g-cm
Release Force RF(Min): 100g-cm
Pre-travel PT(Max): 20˚
Tripping Position TP (±10%): 22.5˚
Movement differential MD(Max): 10˚
Over travel OT(Min): 75˚
Total travel TT(Min): 95˚
Rotary Indexing: 22.5˚
‧ Economical Plastic

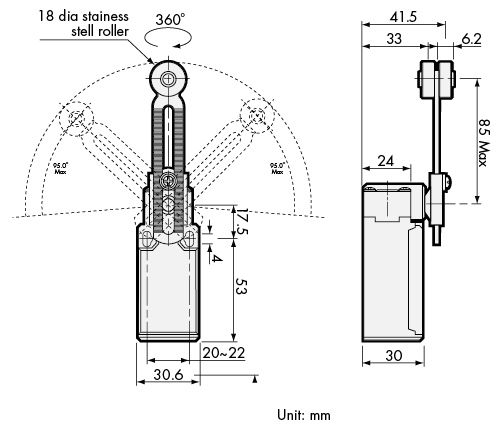

‧ Stainless steel roller, tool steel and spring
‧ Pendulum up to ±95˚, amplitude
‧ PG13.5 gland that can be equipped
